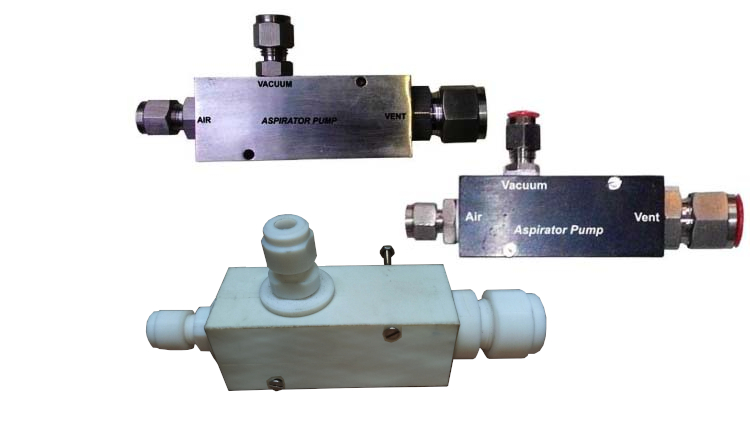

Air Operated Aspirator Pump
No moving parts ensures long life with low maintenance.
Air-powered—require no electrical power source or lubricant.
Technical Specification
- Wetted Parts : SS316/Aluminum/PTFE
- Free-Air Capacity : 90.6 LPM
- Max Flow Rate : 90.6 Liters/min
- Max Vacuum : 28 in Hg
- Air Input at 80 Psi : 136 LPM
-
Port Size
Air supply : 1/4" BSPF
Vacuum : 1/8" BSPF
Vent : 1/2" BSPF
