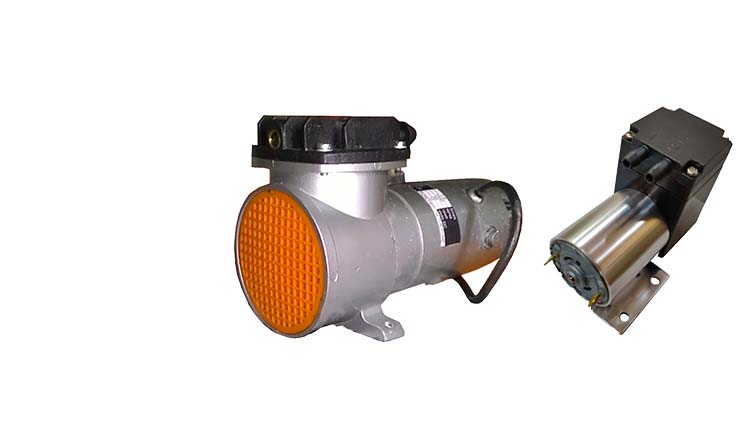

Diaphragm Vacuum Pumps
Diaphragm gas pumps transfer or compress gases and vapors and generate vacuum without contaminating the media. They are available with options for application requirements related to size, motor, control, voltage, chemical resistance, safety, vibration, noise and temperature resistance. All pump types offer oil-free operation.
Technical Specification
- Flow Rate (max.) : 75 LITRES PER MIN
- Pressure (max.) : 55 PSIg
- Ultimate Vacuum (max.) : 28" Hg
- Valve Material Options : SS316, TEFLON
- Diaphragm Material Options : NEOPRENE, TEFLON
- Pump Head Material Options : AL, SS
- Motor Type Options : AC/DC
- Power supply Options : 230 Vac / 12 Vdc
