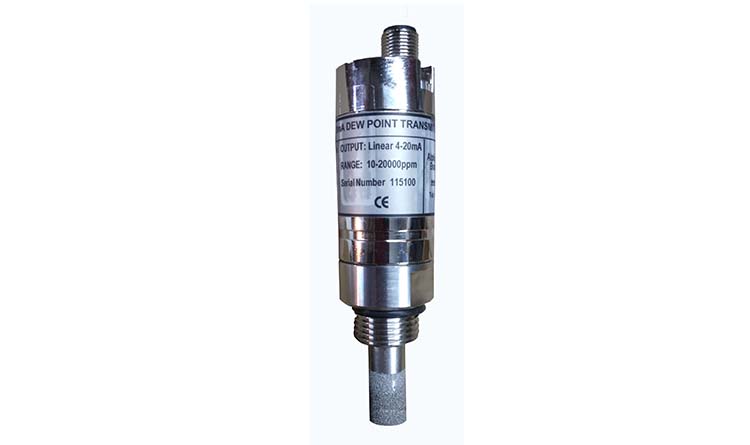

Technical Specification

• Type of Transmitter : 2 Wire
• Range : -60°C to +20°C
• Accuracy : ± 2° C Dewpoint
• Ingress IP Protection : IP65 / NEMA4
• Material of construction : stainless steel
• Pressure range : -1 to 16 bar
• Power supply : 24 VDC (10 - 30 VDC)
• Cable connection : M12, 5-pole
• Output : 4-20 mA = -60°C to +20°C dewpoint
• APPLICATIONS : continuous measurement of moisture in a process gas or compressed air
