Technical Specification

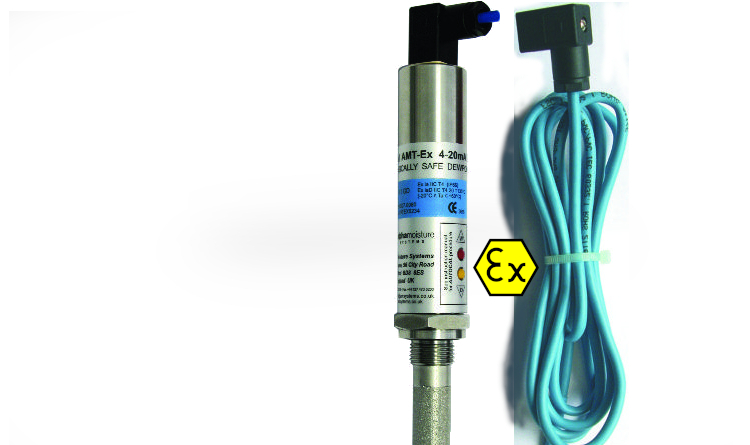

• Type of Transmitter : 3 Wire, 4-20mA Loop Powered Transmitter
• Range : -120°C to +20°C Dewpoint
• Accuracy : ± 2° C Dewpoint
• Ingress IP Protection : IP66 / NEMA4X Protection
• Material of construction : 316 Stainless Steel body
• Pressure range : 0.01 to 350 bar
• Power supply : 24 VDC (12 - 28 VDC) Reverse polarity protected.
• Cable connection : IP66 (NEMA4X) rated, size C, DIN EN 175301
• Output : 4 to 20mA Linear with selectable engineering units.
• Factory configured unit : ppm(v), ppm(w), g/m3 and lb/MMSCF etc.
• Certification : ATEX and IECEx.
• APPLICATIONS : continuous measurement of moisture in dry process gases or dry compressed air
• Dew Point Converter : ppmv to °C
